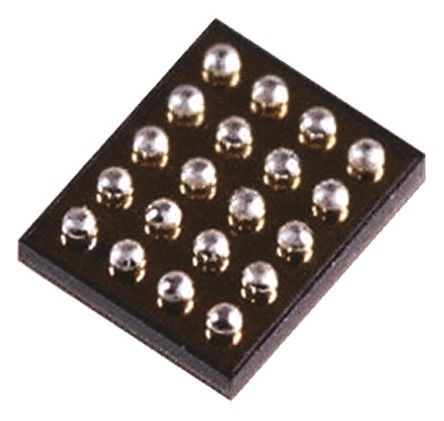

- FAN53555UC08X - Fairchild Semiconductor
-
Manufacturer:Fairchild Semiconductor
-
ManyChip's Part#:MC114995500
-
Category:DC-DC Converters
-
Package:WLCSP-20
-
Datasheet:Datasheet 3D Model
-
Description:Преобразователь постоянного тока DC-DC от 2,5 В до 5,5 В с одним выходом – от -0,3 В до 3 В, 5 А, 20-контактный формата WLCSP T/R
-
Stock Locations:
-
Availability:10,125 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.16
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Рабочая частота: 2,4 МГц * Лучшее в своем классе способность к перегрузке на выходе * Способность к непрерывному току выхода: 5 А * Способность к импульсному току: 6,5 А (опция 05) * Диапазон входного напряжения от 2,5 В до 5,5 В * Цифровая программируемая выходная напряжение: * Опции 00/01/03/05/08: 0,60–1,23 В по шагам в 10 мВ * Опция 04/042: 0,603–1,411 В по шагам в 12,826 мм * Программируемая скорость смены напряжения * Интерфейс совместимый с I2C со скоростью до 3,4 Мбит/с * Режим PFM для высокой эффективности при небольшом нагрузке * Напряжение в режиме PFM: 60 мкА (типичное значение) * Внутренний процесс снижения напряжения до запуска устройства * Блокировка входного напряжения ниже определенного уровня (UVLO) * Термальный отключение и защита от перегрузки * Формат корпуса чипа 20 контактов на уровне кристалла WLCSP
FAN53555UC08X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | WLCSP-20 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.02V ~ 1.15V |
| Output Current | 4 A |
| Switching Frequency | 2.4 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 1.23 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Min) | 2.5 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 2 mm |
| Size-Height | 0.378 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
