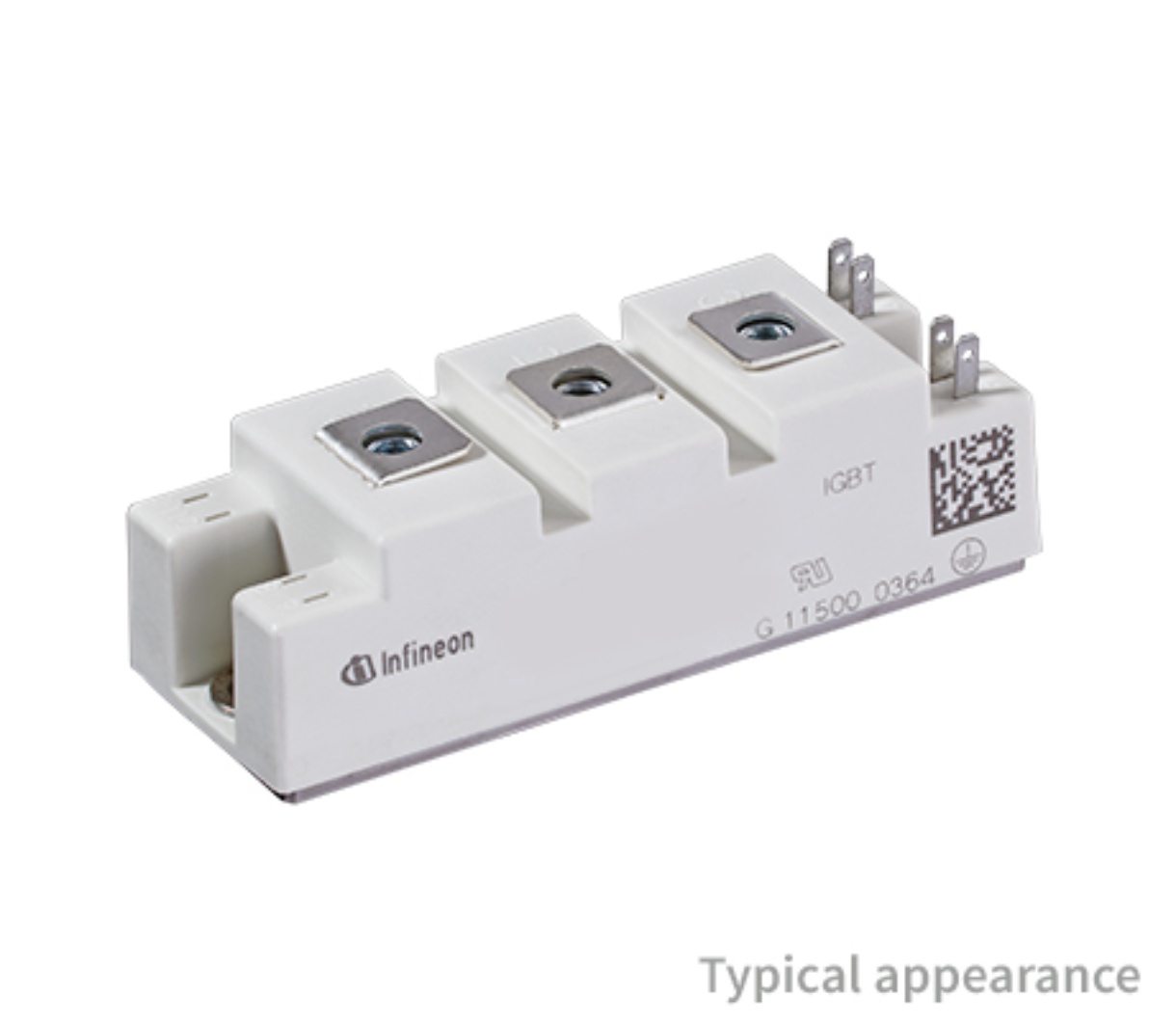

Image is for your reference only,please check specifications for details

FD150R12RT4 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC118799340
Category:
IGBT Transistor, IGBT Module
Package:
-
Datasheet:
Datasheet 3D Model
Description:
INFINEON FD150R12RT4 IGBT Array & Module Transistor, N Channel, 150A, 1.75V, 790W, 1.2kV
Stock Locations:
Availability:
321 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 98.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FD150R12RT4 is a 34mm IGBT Module with fast Trench/Fieldstop IGBT4 and emitter controlled 4 diodes. Isolated base plate with standard housing, optimal electrical performance and VCEsat with positive temperature coefficient.
Extended operating temperature
Low switch losses
LowVCEsat
High reliability
Flexibility

Show

FD150R12RT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	5 Pin
Case/Package	-
Power Rating	790 W
Number of Positions	5 Position
Polarity	N-Channel
Power Dissipation	790 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	9.3nF @25V
Input Power (Max)	790 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
