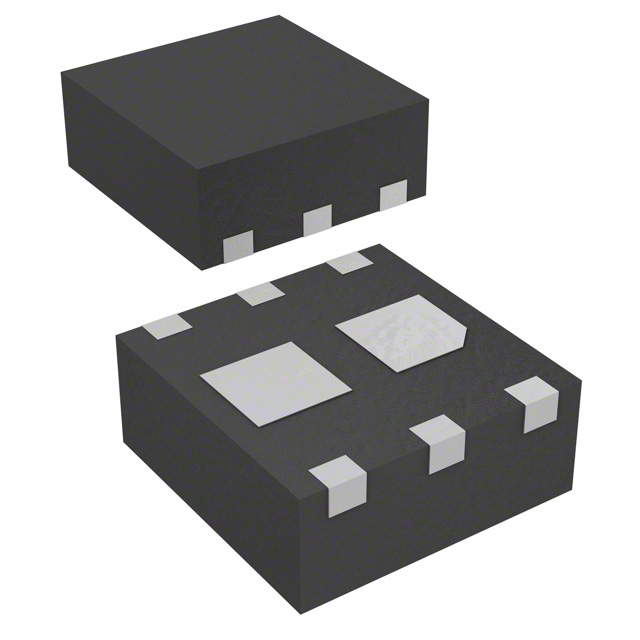

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Mosfet Array 2 P-Channel (Dual) 30V 2.9A 700mW Surface Mount 6-MicroFET (2x2)
FDMA3023PZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | VDFN-6 |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.071 Ω |
| Power Dissipation | 1.4 W |
| Threshold Voltage | 600 mV |
| Drain to Source Voltage (Vds) | 30 V |
| Rise Time | 4 ns |
| Input Capacitance (Ciss) | 530pF @15V(Vds) |
| Input Power (Max) | 700 mW |
| Fall Time | 18 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1.4 W |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
