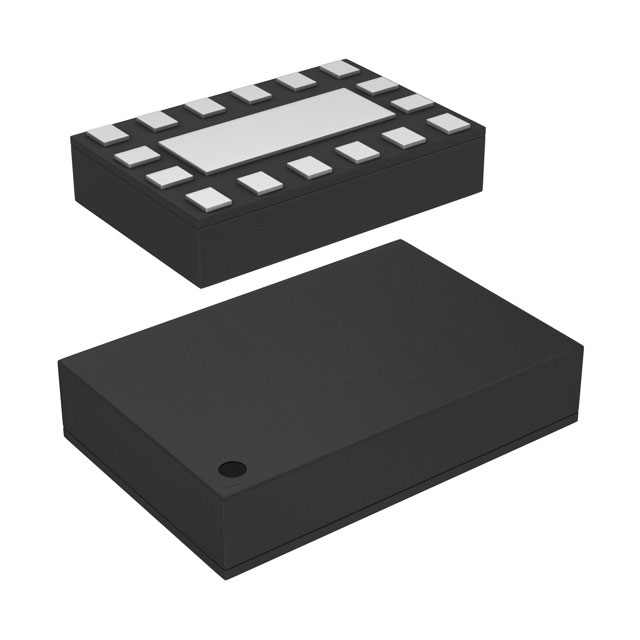

Image is for your reference only,please check specifications for details
- CBTU02043HEJ - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC54925740
-
Category:Logic Controller, Logic IC
-
Package:UFQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:High speed differential 1-to-2 switch chip, -40C to +85C, HUQFN16 Pkg, REEL 13" 10K
-
Stock Locations:
-
Availability:254 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.36
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The CBTU02043 is a high-speed differential 1-to-2 switch chip optimized to interface with type C connector for mobile and PC applications. This high performance switch chip can be used for 1 port USB3.1, PCIe-Gen3 high speed serial interface applications. It can also support DP1.3 or 4 single-ended DDR channels. The CBTU02043 chip can also provide 2-to-1 MUX function by selecting 1 (Port A) out of two differential ports (Port B or C) for other applications.
- The device"s pinouts are optimized for USB3.1 type C DeMUX application and achieve very low crosstalk to meet the stringent type C crosstalk spec. The small package and pinning is ideal for smartphone type C application.
- CBTU02043 is available in 1.6 mm x 2.4 mm x 0.5 mm HUQFN16 package with 0.4 mm pitch.
- MoreLess
- ## Features
- * Optimized for type C connector PCB routing for signal integrity
- * Minimize crosstalk to meet stringent type C requirement
- * Minimize via with friendly type C PCB layout
- * One port (two bidirectional differential channels) 1-to-2 switch
- * Low insertion loss: -1.4 dB at 5 GHz; -0.9 dB at 2.5 GHz; -0.5 dB at 100 MHz
- * Low off-state isolation: -20 dB at 5 GHz; -40 dB at 100 MHz
- * Low return loss: -16 dB at 2.5 GHz; -12 dB @ 5 GHz
- * Low ON-state resistance: 10 Ω (typ)
- * Bandwidth: 12 GHz (typ)
- * Very low DDNEXT crosstalk: < -37 dB at 5 GHz
- * VIC common mode input voltage VIC: 0 V to 2 V
- * Differential input voltage VID: <1.6 V
- * Intra-pair skew: <6 ps
- * VDD Power Supply voltage range: 1.62 V to 3.63 V
- * Low current consumption:
- * 200 µA (typ) for active mode
- * 3 µA (typ) for power-saving
- * CMOS SEL and XSD pins
- * Back current protection on all I/O pins of these switches
- * Patent pending high performance analog pass-gate technology
- * All channels support rail-to-rail input voltage (up to 2.4 V)
- * HUQFN16 1.6 mm x 2.4 mm x 0.5 mm package with 0.4 mm pitch
- * ESD: 2000 V HBM; 1000 V CDM
- * Operating temperature range: -10 °C to 85 °C
- ## Features
- * Operating temperature range: -10 °C to 85 °C
CBTU02043HEJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 16 Pin |
| Case/Package | UFQFN-16 |
| Number of Channels | 2 Channel |
| Number of Positions | 16 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| 3dB Bandwidth | 12 GHz |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 1.62 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
