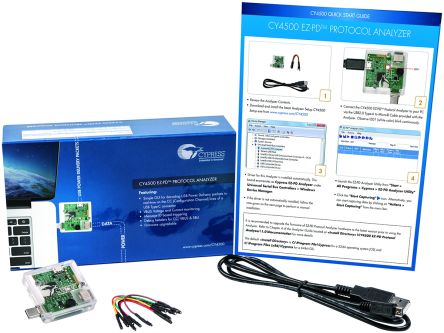

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CY4500 is a EZ-PD protocol analyzer. This EZ-PD protocol analyzer records traffic passively on the Configuration Channel (CC) and allows user to analyze and debug USB power delivery communication. The low-cost and compact CY4500 acts as a pass-through for VBUS, VCONN, USB 3.1, USB 2.0 and USB-PD traffic. The EZ-PD protocol analyzer installer includes a free Windows-based GUI (EZ-PD analyzer utility) that can be used to decode the USB-PD messages.
Simple GUI for decoding USB power delivery packets in real-time on the CC lines
VBUS voltage and current monitoring
Message ID based triggering
Debug headers for CC, VBUS and SBU
Firmware upgradable for future updates

Show

CY4500 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Core Architecture	ARM
Core Sub-Architecture	Cortex-M0
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
