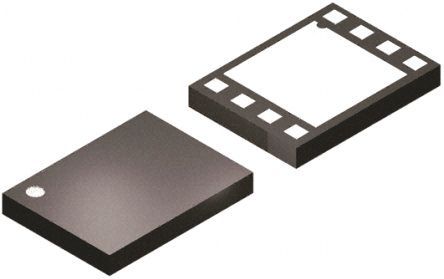

Image is for your reference only,please check specifications for details

FDMS8090 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC96080230
Category:
MOSFET, MOSFET Transistor
Package:
Power-56-8
Datasheet:
Datasheet 3D Model
Description:
Power Field-Effect Transistor, 10A I(D), 100V, 0.013Ω, 2Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, 6 X 5MM, ROHS COMPLIANT, POWER 56, MLP, 8Pin
Stock Locations:
Availability:
1,538 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FDMS8090 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-56-8
Number of Channels	2 Channel
Polarity	N-CH
Power Dissipation	2.2 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Continuous Drain Current (Ids)	10A
Rise Time	4.6 ns
Input Capacitance (Ciss)	1800pF @50V(Vds)
Input Power (Max)	2.2 W
Fall Time	4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	59 W
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
