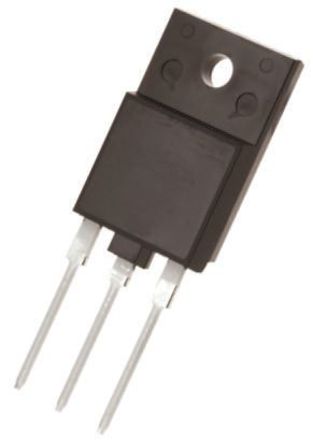

Image is for your reference only,please check specifications for details

FFAF60UA60DN - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC65040703
Category:
Diode Array, TVS Diode Array
Package:
TO-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FFAF60UA60DN Standard Power Diode, 600V, 60A, Dual Common Cathode, 2.2V, 90ns, 180A
Stock Locations:
Availability:
408 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FFAF60UA60DN is an Ultrafast II Dual Diode offers low forward voltage drop and rugged UIS capability. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies and industrial application as welder and UPS application.
<90ns at IF=1A Ultrafast recovery
High reliability
Avalanche energy rated

Show

FFAF60UA60DN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3
Forward Voltage	2.2V @30A
Reverse recovery time	90 ns
Forward Current	60 A
Max Forward Surge Current (Ifsm)	180 A
Maximum Forward Voltage (Max)	2.2 V
Forward Current (Max)	30 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	15.7 mm
Size-Width	5.7 mm
Size-Height	26.7 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
