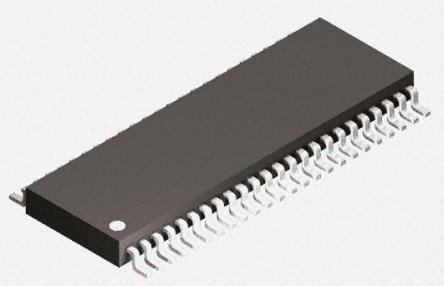

Image is for your reference only,please check specifications for details

FIN1108MTD - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC53661087
Category:
Interface IC, Interface Controller
Package:
TSSOP-48
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FIN1108MTD LVDS Driver, LVDS Repeater, 135 ps, 80mA, -40℃, 85℃, 3V
Stock Locations:
Availability:
1,640 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FIN1108MTD is a 8-port Repeater for high-speed interconnects utilizing low voltage differential signalling (LVDS) technology. The FIN1108 accepts and outputs LVDS levels with a typical differential output swing of 330mV, which provides low EMI at ultra-low power dissipation even at high frequencies. The FIN1108 provides a VBB reference for AC coupling on the inputs. In addition, the FIN1108 can directly accept LVPECL, HSTL and SSTL-2 for translation to LVDS.
Wide rail-to-rail common mode range
3.5ps Maximum random jitter and 135ps maximum deterministic jitter
Ultra low power consumption
20ps Typical channel-to-channel skew
Power-OFF protection
Open circuit failsafe protection
VBB > Reference output
Internal termination resistors

Show

FIN1108MTD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Supply Voltage (DC)	3.00V (min)
Supply Current	80 mA
Number of Channels	8 Channel
Number of Positions	48 Position
Data Rate	800 Mbps
Input Capacitance	3 pF
Input Current (Min)	20 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	12.5 mm
Size-Width	6.1 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
