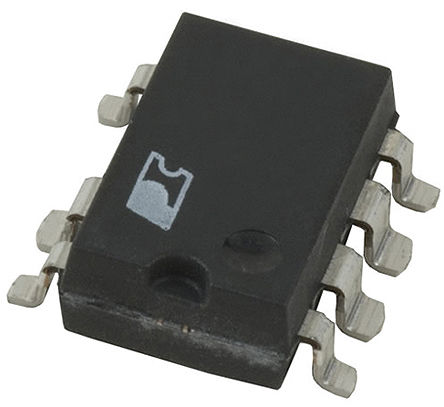

Image is for your reference only,please check specifications for details

FLS0116MX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC79087240
Category:
LED Driver, LED Display Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FLS0116MX Led Driver, 1 Output, Buck (Step Down), 80VAC-308VAC in, 250kHz switch, 15.5V out, SOIC-7
Stock Locations:
Availability:
10,160 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FLS0116MX is a LED Lamp Driver IC with integrated MOSFET and PFC function. The special adopted digital technique automatically detects input voltage condition and sends an internal reference signal to achieve high power factor. When AC input is applied to the IC, the PFC function is automatically enabled. When DC input is applied to the IC, the PFC function is automatically disabled. The FLS0116 does not need a bulk (electrolytic) capacitor for supply rail stability, which significantly improves LED lamp life.
Digitally implemented active-PFC function
No additional circuit for achieving high PF
Built-in HV supplying circuit - self biasing
AOCP function with auto-restart mode
Built-in over-temperature protection function
Cycle-by-cycle current limit
Current sense pin open protection
Under-voltage lockout with 5V hysteresis
Programmable oscillation frequency
Programmable LED current
Analogue dimming function
Soft-start function
Precise internal reference - ±3%
Ornament and interior light

Show

FLS0116MX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	SOIC-8
Frequency	20kHz ~ 250kHz
Number of Outputs	1 Output
Output Voltage	15.5 V
Number of Positions	7 Position
Power Dissipation	660 W
Switching Frequency	250 kHz
Input Voltage (Max)	308 VAC
Input Voltage (Min)	80 VAC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	660 mW
Supply Voltage	9V ~ 20V
Input Voltage	80V ~ 308V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
