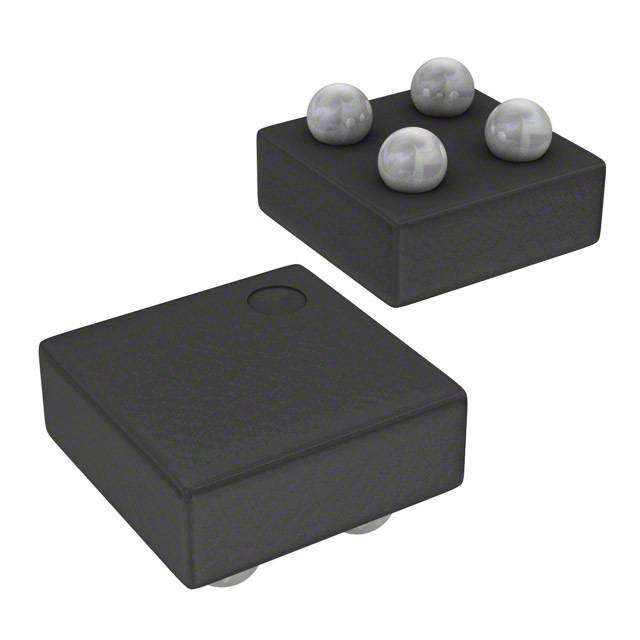

Image is for your reference only,please check specifications for details

FPF1204UCX - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5095004
Package:
WLCSP-4
Datasheet:
Datasheet 3D Model
Description:
FPF1204 Series 1Channel 5.5V 220mOhm SMT High Side Load Switch - WLCSP-4
Stock Locations:
Availability:
36 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FPF1203 / 04 / 45 are ultra-small integrated IntelliMAX™ load switches with integrated P-channel switch and analog control features. Integrated slew-rate control prevents inrush current and the resulting excessive voltage drop on the power rail. The input voltage range operates from 1.2V to 5.5V to provide power-disconnect capability for post-regulated power rails in portable and consumer products. The low shut-off current of 1µA (maximum) allows power designs to meet standby and off-power drain specifications. The FPF1203 / 04 / 45 are controlled by an active-HIGH logic input (ON pin) compatible with standard CMOS GPIO circuitry found on Field Programmable Gate Array (FPGA) embedded processors. The FPF1203 / 04 / 045 are available in 0.76mm x 0.76mm 4-bump WLCSP.
Features
---
|
1.2V to 5.5V Input Voltage Operating Range
Typical RON:
45mΩ at VIN=5.5V
55mΩ at VIN=3.3V
90mΩ at VIN=1.8V
85mΩ at VIN=1.2V
Slew Rate Control with tR:
FPF1203/FPF1204:100µs
FPF12045:2µs
Output Discharge Function on FPF1204 / FPF1205
Low <1.5µA Quiescent Current
ESD Protected: Above 7kV HBM, 2kV CDM
GPIO / CMOS-Compatible Enable Circuitry
4-Bump WLCSP, 0.76mm x 0.76mm, 0.4mm Pitch
