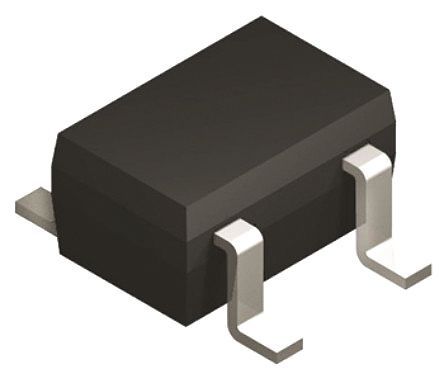

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Making sure you system does not receive any surges of current, this FPF2003 load switch made by Fairchild Semiconductor will keep your system safe. This current limited load switch"s single output can produce a current up to 0.1 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 5.5 V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This current limited load switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

FPF2003 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	5.00 V
Number of Outputs	1 Output
Output Voltage	≤6.00 V
Output Current	0.1 A
Drain to Source Resistance (on) (Rds)	0.7 Ω
Polarity	P-Channel
Power Dissipation	0.25 W
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Current (Max)	50 mA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Input Voltage	1.8V ~ 5.5V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
