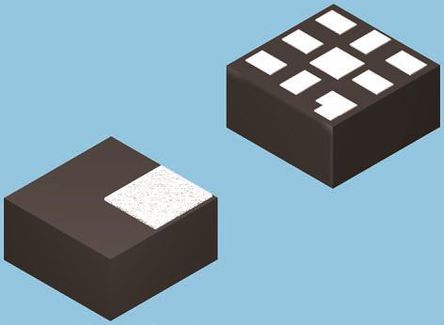

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FPF2700MPX is an AccuPower™ adjustable over-current protection Load Switch for hard disk drives. The AccuPower™ FPF270X series is a family of current-limit load switch that provide full protection to systems and loads from excess current conditions. Minimum current limit is adjustable from 0.4 to 2.0A. The FPF270X contains a slew-rate-controlled N-channel MOSFET and slew-rated turn-on to prevent power bus disturbances from being caused by hot plugging loads or momentary excess load demands. The input voltage range is 2.8 to 36V. Loads can be activated or deactivated with a low-voltage logic-compatible on pin. Fault conditions can be monitored using the error flag pin and/or the power-good pin. Each member of the FPF270X family serves a category of load-fault response. All devices clamp the load current so that it cannot exceed an externally programmed current level. An over-temperature feature provides further device protection in case of excessive levels of power dissi
88mR Typical RDS (ON)
Slew rate controlled
Above 2000V HBM ESD protected
Thermal shutdown
Active low enable
UVLO protection
Power-good output
ESD sensitive device, take proper precaution while handling the device.

Show

FPF2700MPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Number of Outputs	1 Output
Input Voltage (DC)	36.0 V
Output Current	2 A
Number of Positions	8 Position
Power Dissipation	1.25 W
Input Voltage (Max)	36 V
Input Voltage (Min)	2.8 V
Output Current (Max)	2 A
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1250 mW
Input Voltage	36 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
