FS50R06W1E3 Infineon - IGBT Transistor, IGBT Module

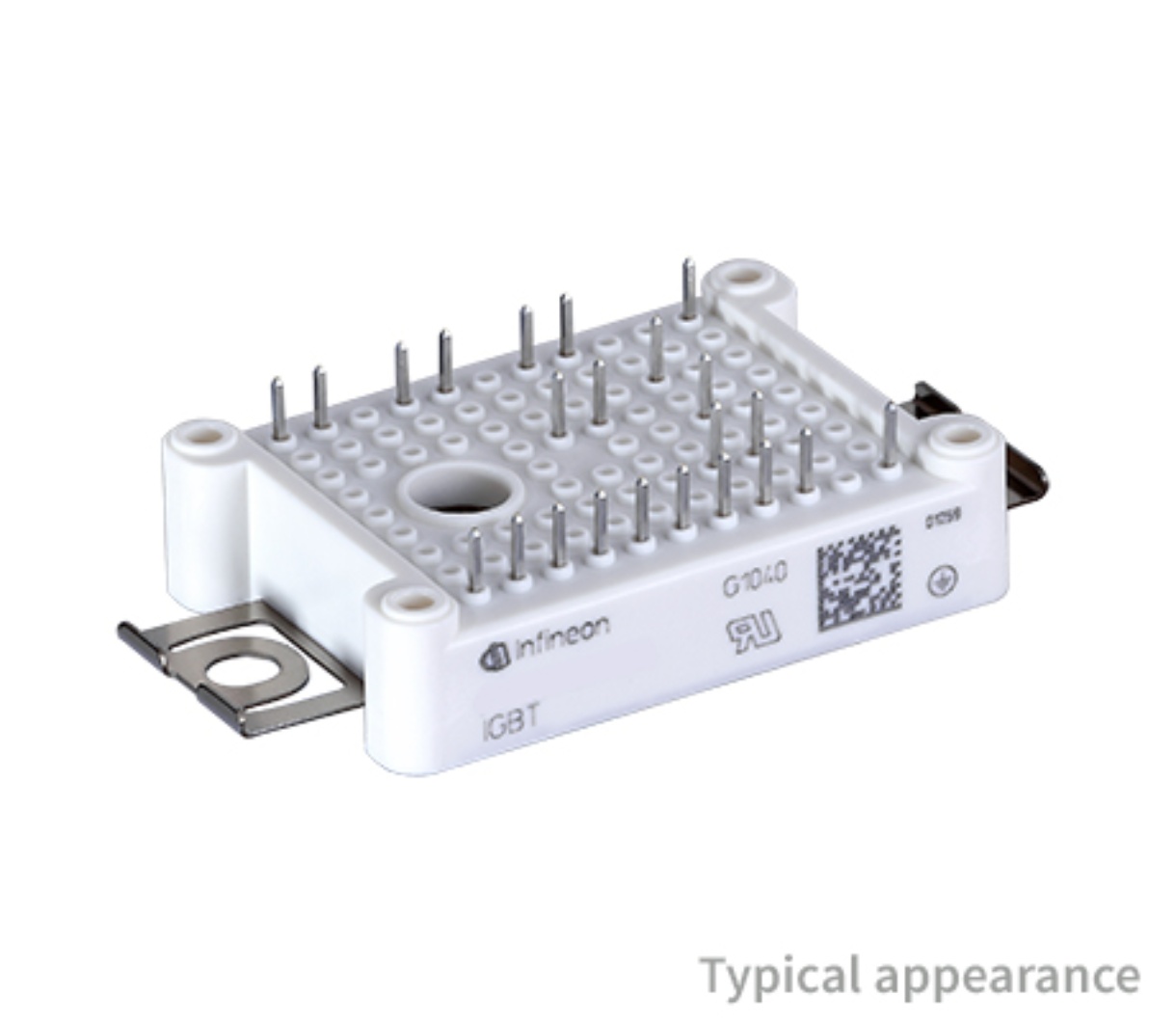

Image is for your reference only,please check specifications for details

FS50R06W1E3 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC191971837
Category:
IGBT Transistor, IGBT Module
Package:
EASY1B-1
Datasheet:
Datasheet 3D Model
Description:
Инфраструктурный модуль IGBT INFINEON FS50R06W1E3, транзистор N-канала, 50 А, 1,45 В, 205 Вт, 600 В, модуль
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 51.95

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FS50R06W1E3 — это IGBT-модуль EasyPACK™ 1B с транше́йным и полевым стоп-слоем IGBT3, эмиттерно-управляемым диодом 3 и NTC. Он подходит для кондиционирования воздуха и сервоприводов.
Низкие потери при переключении
V(CEsat) с положительным температурным коэффициентом
Подложка из Al2O₃ с низким тепловым сопротивлением
Компактная конструкция
Технология пайки контактов
Надежный монтаж благодаря встроенным монтажным зажимам
Компактная концепция модуля
Гибкость конфигурации

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	18 Pin
Case/Package	EASY1B-1
Number of Positions	18 Position
Polarity	N-Channel
Power Dissipation	205 W
Operating Temperature (Max)	150 ℃
	Show
Size-Length	62.8 mm
Size-Width	33.8 mm
Size-Height	12 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
