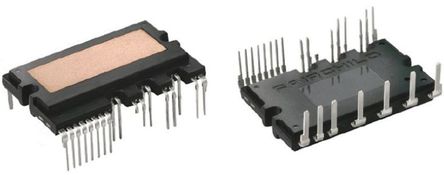

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FSBF5CH60B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-JA
Frequency	20.0 kHz
Input Voltage (DC)	253 V
Output Voltage	0.3 V
Output Current	5 mA
Supply Current	23 mA
Power Dissipation	19 W
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	19 W
	Show
Size-Length	44 mm
Size-Width	26.8 mm
Size-Height	5.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
