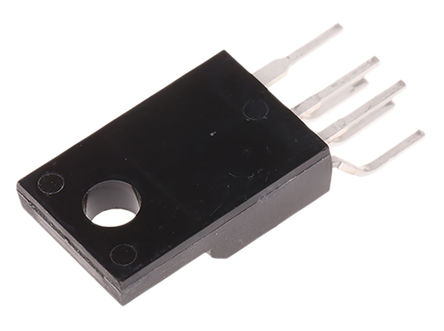

Image is for your reference only,please check specifications for details

FSDM0565REWDTU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC57378646
Category:
AC to DC Converter, AC/DC Power Module
Package:
TO-220-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSDM0565REWDTU Power Load Switch, Integrated PWM and SenseFET, 1 Output, 20V, 2.8A, TO-220-6
Stock Locations:
Availability:
9,761 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.95

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSDM0565REWDTU is a 650V Integrated Power Switch for 60W offline flyback converters. The FSDM0565RE is an integrated Pulse Width Modulator (PWM) and SenseFET specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This device is an integrated high-voltage power-switching regulator that combines an avalanche-rugged SenseFET with a current mode PWM control block. The PWM controller includes an integrated fixed-frequency oscillator, under-voltage lockout, leading-edge blanking (LEB), optimized gate driver, internal soft-start, temperature-compensated precise-current sources for a loop compensation and self-protection circuitry. Compared with a discrete MOSFET and PWM controller solution, it can reduce total cost, component count, size and weight while simultaneously increasing efficiency, productivity and system reliability.
Internal avalanche rugged sense FET
Advanced burst-mode operation consumes under 1W at 240VAC and 0.5W load
Precision fixed operating frequency (66kHz)
Internal start-up circuit
Improved pulse-by-pulse current limiting
Overvoltage protection (OVP)
Overload protection (OLP)
Internal thermal shutdown function (TSD)
Auto-restart mode
Under-voltage lockout (UVLO) with hysteresis
ESD sensitive device, take proper precaution while handling the device.

Show

FSDM0565REWDTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	TO-220-6
Frequency	66.0 kHz
Supply Voltage (DC)	20.0V (max)
Power Rating	70 W
Number of Outputs	1 Output
Input Voltage (DC)	20.0 V
Output Current	2.8 A
Breakdown Voltage	650 V
Supply Current	2.5 mA
Number of Positions	6 Position
Power Dissipation	45 W
Switching Frequency	66 kHz
Duty Cycle	82 %
Input Voltage (Max)	20 V
Output Current (Max)	2.8 A
Output Current (Min)	2.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	45000 mW
Input Voltage	20 V
	Show
Size-Length	10.36 mm
Size-Width	4.8 mm
Size-Height	9.19 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
