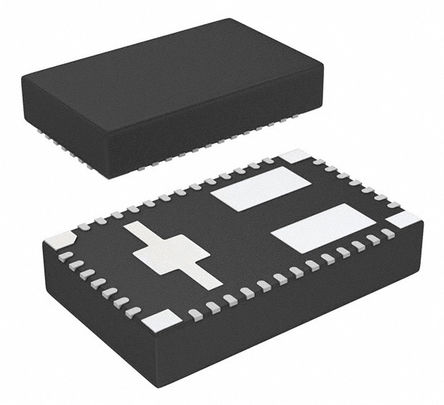

Image is for your reference only,please check specifications for details

LMZ31503RUQT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15708230
Category:
DC to DC Converter
Package:
QFN-47
Datasheet:
Datasheet 3D Model
Description:
DC-DC POL Converter, Adjustable, Buck, 780kHz, 800mV to 5.5V out, 3A, QFN-47
Stock Locations:
Availability:
214 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.24

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMZ31503RUQT is a SIMPLE SWITCHER® Power Module combines a 3A DC/DC converter with power MOSFETs, a shielded inductor and passives into a low profile. This is an easy-to-use integrated power solution. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetic design process. It is easy to solder onto a printed circuit board and allows a compact point-of-load design with up to 95% efficiency and excellent power dissipation with thermal impedance of 13°C/W junction to ambient. The device delivers the full 3A rated output current at 85°C ambient temperature without airflow. The LMZ31503 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs.
Complete integrated power solution allows small footprint, low-profile design
Synchronizes to an external clock
Adjustable slow-start
Output voltage sequencing/tracking
Power good output
Programmable undervoltage lockout
Overcurrent protection
Over temperature protection
Pre-bias output start-up
Meets EN55022 class B emissions - Integrated shielded inductor
Wide-output voltage adjust - 0.8 to 3.6V with 1% reference accuracy
Green product and no Sb/Br

Show

LMZ31503RUQT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	47 Pin
Case/Package	QFN-47
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	3 A
Number of Positions	47 Position
Number of Regulated Outputs	1 Output
Switching Frequency	780 kHz
Topology	Buck
Input Voltage (Max)	14.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14.5 V
Input Voltage (DC Min)	1.6 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 14.5V
	Show
Size-Length	15.15 mm
Size-Width	9.15 mm
Size-Height	2.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/12/17
