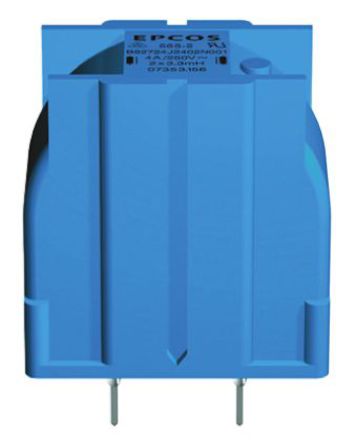

Image is for your reference only,please check specifications for details

B82724J2402N001 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC6483463
Category:
Inductor
Package:
33.2 mm
Datasheet:
Datasheet 3D Model
Description:
Epcos 3300uH +/-30% Ferrite Power Inductor; 4A Idc; 65mOhms Rdc B82721A
Stock Locations:
Availability:
1,653 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82724J2402N1 is a 4A current-compensated ring core Common Mode Choke Filter suitable for wave soldering. It has ferrite core with epoxy coating, polycarbonate case, polyurethane potting and sector winding, hot dipped Ni and Sn layer composition CuNi18Zn20 base terminal.
High resonance frequency due to special winding technique
Approximate 1% stray inductance for symmetrical interference suppression
Design complies with EN 60938-2 and UL 1283
UL94V-0 Flammability rating
Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
