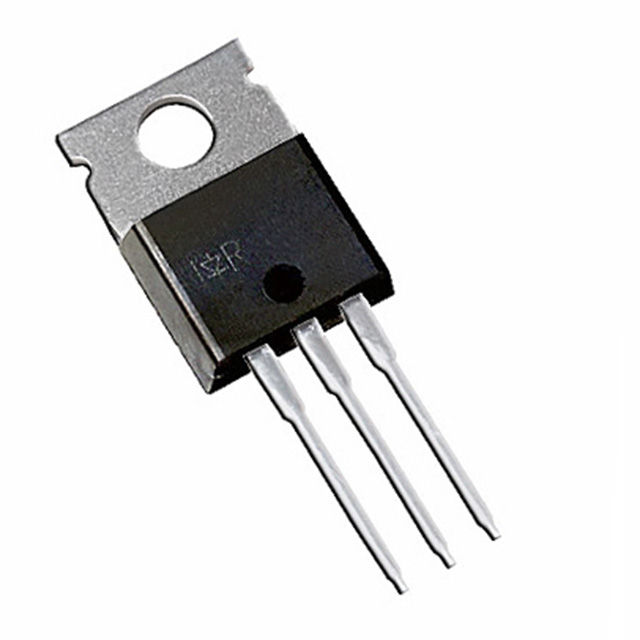

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFZ48N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Voltage Rating (DC)	55.0 V
Current Rating	64.0 A
Drain to Source Resistance (on) (Rds)	14.0 mΩ
Polarity	N-Channel
Power Dissipation	130 W
Part Family	IRFZ48N
Drain to Source Voltage (Vds)	55.0 V
Breakdown Voltage (Drain to Source)	55.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	64.0 A
Rise Time	78.0 ns
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
