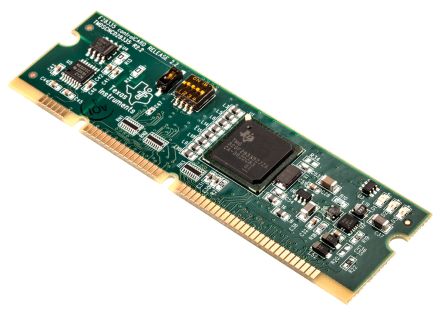

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ideal product for OEMs to use for initial software development and short run builds for system prototypes, test stands, and many other projects that require easy access to high-performance controllers. The controlCARDs are complete board-level modules that utilise an industry-standard DIMM form factor to provide a low-profile single-board controller solution. All of the C2000 controlCARDs use the same 100-pin connector footprint to provide the analog and digital I/Os on-board controller and are completely interchangeable.
TMS320F28335 TMS320F28335 Digital Signal Controller
High-Performance Static CMOS Technology
Up to 150 MHz (6.67-ns Cycle Time)
1.9-V/1.8-V Core, 3.3-V I/O Design
High-Performance 32-Bit CPU
Six Channel DMA Controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
16-bit or 32-bit External Interface (XINTF)
On-Chip Memory
Boot ROM (8K x 16)
Small form factor - 9cm x 2.5cm
Standard 100-pin DIMM interface
F28x analog I/O, digital I/O and JTAG signals at DIMM interface
Isolated RS-232 RS-232 interface
5V power supply required

Show

TMDSCNCD28335 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Core Architecture	C2000
Core Sub-Architecture	C2000
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A991.a.2
