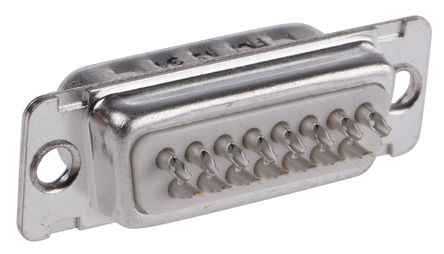

DA15P064TXLF - FCI Electronics
Manufacturer:
FCI Electronics
ManyChip's Part#:
MC27743997
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Datasheet:
Datasheet 3D Model
Description:
Conn D-Subminiature PIN 15POS 2.74mm Solder Bucket ST Panel Mount 15 Terminal 1Port
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DA15P064TXLF is a 15-way 2-row male standard D-Sub Connector with gold-plated copper alloy contacts, 20AWG maximum wire, solder bucket termination. This D series connector with shielding termination fingers and T-standard tin/Cu-plated shell.
5A Operating current
UL94V-0 Flammability rating
-55 to +125°C Operating temperature range

Show

DA15P064TXLF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.74 mm
Number of Contacts	15 Contact
Gender	Male
Wire Gauge	20.0 AWG
Contact Plating	Gold
Voltage Rating (DC)	1.00 kV
Current Rating	5 A
Number of Rows	2 Row
Flammability Rating	UL 94 V-0
Number of Positions	15 Position
Number of Mating Cycles	200 Cycle
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	300 V
Operating Voltage (Max)	1000 VAC
	Show
Size-Length	38.76 mm
Size-Width	12.17 mm
Size-Height	12.17 mm
Color	Natural
Contact Material	Copper Alloy
Operating Temperature	-55℃ ~ 125℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
