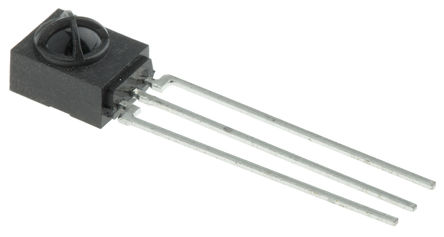

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The GP1UX511QS from Sharp is a IR detector for remote control.
- Holder less shield case type
- Compact type
- Supply voltage range from 4.5V to 5.5V
- Band pass filter centre frequency of 38KHz
- Typical dissipation current of 0.5mA
- Operating temperature range from -10°C to 70°C
GP1UX511QS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Supply Current | 600 µA |
| Number of Positions | 3 Position |
| Rise Time | 1.20 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 5.5 mm |
| Size-Width | 5.3 mm |
| Size-Height | 7.5 mm |
| Operating Temperature | -10℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
