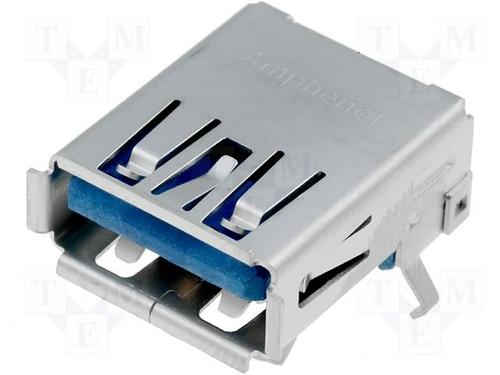

Image is for your reference only,please check specifications for details

GSB311131HR - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC18047463
Category:
Connector
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
Conn USB 3.0 Type A RCP 9POS 2mm Solder RA Thru-Hole 9 Terminal 1Port T/R
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GSB311131HR is a standard right angle through-hole Type-A USB 3.0 Receptacle with 30µinch gold-plated phosphor bronze contacts and high-temperature thermoplastic housing. It provides the interface for super speed up to 5Gbps data rate. 5 metal friction lock grounding fingers and polarization plastic design ensure plug retention.
Rugged gold-plated leaf contact withstand up to 5000 cycles
High temperature plastic for SMT process and halogen-free solution
Two fork lock hold-down ensure mounting force
Full metal shielding for EMI/RFI/ESD protection
100MR Minimum insulation resistance

Show

GSB311131HR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Through Hole
Number of Contacts	9 Contact
Gender	Female
Contact Plating	Gold
Voltage Rating (AC)	30.0 V
Current Rating	0.25A, 1.8A
Insulation Resistance	100 MΩ
Orientation	Right Angle
Flammability Rating	UL 94 V-0
Number of Positions	9 Position
Contact Resistance	50 mΩ
Number of Mating Cycles	5000 Cycle
Current Rating (Max)	1.8A, 0.25A
Voltage Rating (Max)	30 VAC
Voltage Rating	30 VAC
	Show
Size-Height	7 mm
Housing Color	Blue
Contact Material	Phosphor Bronze
Product Lifecycle Status	New Technology: Cutting edge technology for the newest designs.
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
