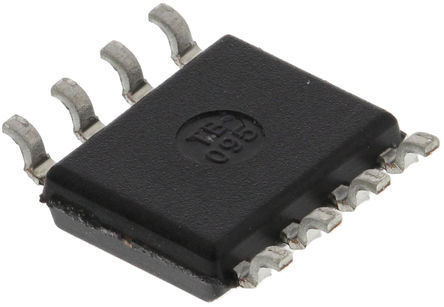

HCPL0701 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11479644
Category:
Optocoupler, Optoisolator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR HCPL0701 Optocoupler, Darlington Output, 1Channel, SOIC, 8Pins, 20mA, 2.5kV, 500%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HCPL0701 is a 1-channel 8-pin High Gain Optocoupler consists of an AlGaAs LED optically coupled to a high gain split Darlington photodetector housed. The split Darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional Darlington phototransistor optocoupler. The combination of a very low input current of 0.5mA and a high current transfer ratio of 2000% makes this family particularly useful for the input interface to MOS, CMOS, LSTTL and EIA RS232C, while output compatibility is ensured to CMOS as well as high fan-out TTL requirements. It is suitable for digital logic ground isolation, telephone ring detector, EIA-RS-232C line receiver and high common mode noise line receiver.
10kV/µs Superior CMR
-40 to +85°C Operating temperature range

Show

HCPL0701 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Input Voltage (DC)	1.25 V
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.25 V
Power Dissipation	0.1 W
Isolation Voltage	2500 Vrms
Forward Current	20 mA
Output Voltage (Max)	18 V
Input Current (Min)	20 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
