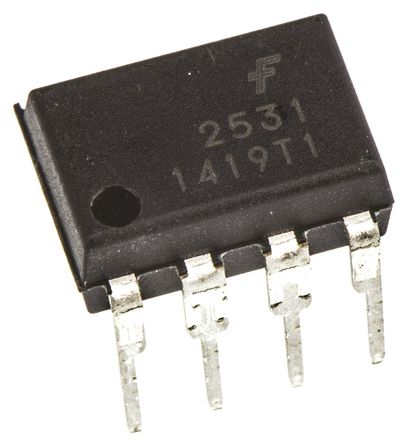

HCPL2531 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7179042
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR HCPL2531 Optocoupler, Transistor Output, 2Channel, DIP, 8Pins, 50mA, 2.5kV, 19%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HCPL2531 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Input Voltage (DC)	1.40 V
Output Voltage	20.0 V
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Forward Voltage	1.45 V
Input Current	16.0 mA
Power Dissipation	0.1 W
Rise Time	1 µs
Isolation Voltage	2500 Vrms
Forward Current	25 mA
Output Voltage (Max)	20 V
Input Current (Min)	25 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	50 mA
Fall Time	1 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Height	3.94 mm
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
