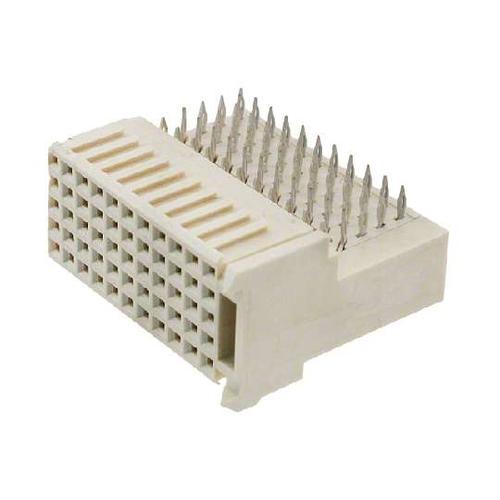

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HM2R30PA5100N9LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.00 mm
Number of Contacts	55 Contact
Contact Plating	Gold
Current Rating	1.5 A
Number of Rows	5 Row
Number of Positions	55 Position
Number of Mating Cycles	250 Cycle
Current Rating (Max)	1.5A/触头
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	750 VAC
Voltage Rating	500 V
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Width	20.3 mm
Size-Height	12.25 mm
Contact Material	Phosphor Bronze
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
