Description

Product Details

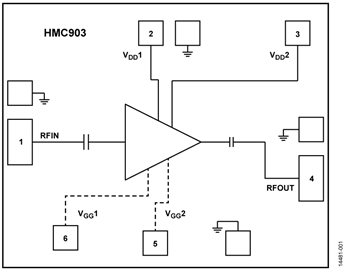

The HMC903 is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), low noise amplifier (LNA), which is self biased with the optional bias control for IDQ reduction. It operates between 6 GHz and 18 GHz. This LNA provides 19 dB of small signal gain, 1.6 dB noise figure, and an output third-order intercept (IP3) of 27 dBm, requiring only 90 mA of supply current from a 3.5 V supply. The output power for a 1 dB compression (P1dB) of 16 dBm enables the LNA to function as a local oscillator (LO) driver for balanced, I/Q, or image rejection mixers. The HMC903 also features inputs/outputs that are dc blocked and internally matched to 50 Ω for ease of integration into multichip modules (MCMs). All data is taken with the HMC903 in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter with bonds of 0.31 mm (12 mil) length.
Applications
Point to point radios
Point to multipoint radios
Military and space
Test instrumentation
### Features and Benefits
Noise figure: 1.6 dB typical
Small signal gain: 19 dB typical
Output P1dB: 16 dBm typical
Single-supply voltage: 3.5 V at 90 mA typical
Output IP3: 27 dBm typical
50 Ω matched input/output
Self biased with optional bias control for quiescent drain control (IDQ) reduction with no radio frequency (RF) applied
Die size: 1.33 mm × 1.08 mm × 0.102 mm

Show

HMC903 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	6 Pin
Case/Package	SMD
Frequency	6GHz ~ 18GHz
Supply Voltage (DC)	3.50V (max)
Supply Current	90 mA
Number of Channels	1 Channel
Power Dissipation	0.62 W
Gain	19 dB
Test Frequency	6GHz ~ 18GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	620 mW
Supply Voltage	3.5 V
Supply Voltage (Max)	3.5 V
	Show
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
