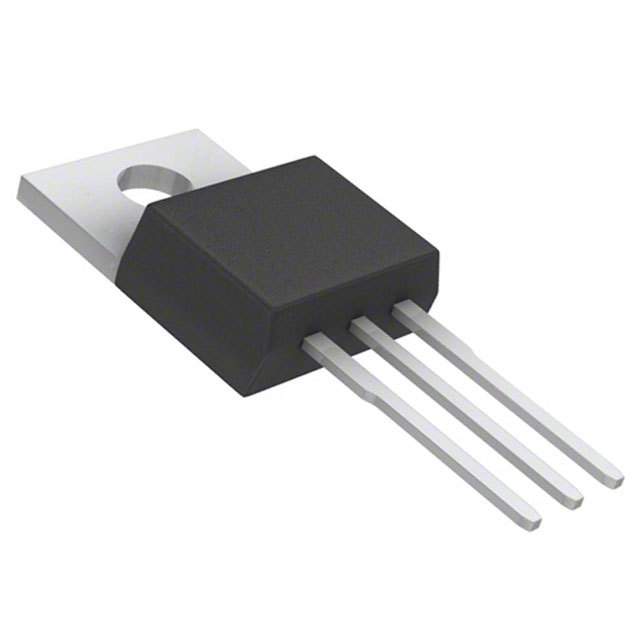

The HUF75542P3 is an UltraFET N-channel Power MOSFET with ultra-low ON-resistance.
Peak current vs. pulse width curve
UIS rating curve
Simulation models - Temperature compensated PSPICE® & SABER™, thermal impedance SPICE & SABER

Show

HUF75542P3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	80.0 V
Current Rating	75.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.014 Ω
Polarity	N-Channel
Power Dissipation	230 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	80 V
Breakdown Voltage (Drain to Source)	20.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	75.0 A
Rise Time	117 ns
Input Capacitance (Ciss)	2750pF @25V(Vds)
Input Power (Max)	230 W
Fall Time	80 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	230W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
