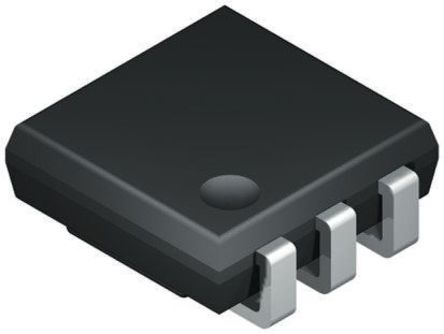

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DS2430AP+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	LSOJ-6
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Operating Voltage	2.8V ~ 6V
Number of Positions	6 Position
Access Time	15 µs
Memory Size	32 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.8 V
	Show
Size-Length	3.94 mm
Size-Width	3.81 mm
Size-Height	1.49 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
