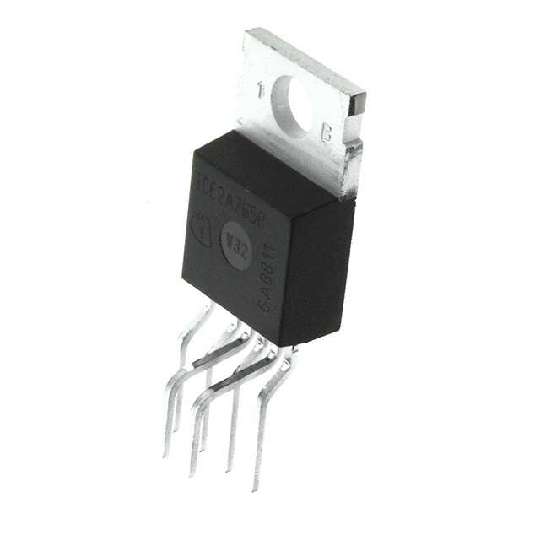

- ICE2A765P2 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC150992359
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:TO-220-6
-
Datasheet:Datasheet 3D Model
-
Description:Current Mode PWM Controller 650V 7A 6Pin TO-220 Tube
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The second generation CoolSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 20kHz/21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation, the dimension of the transformer and the secondary diode can be sized lower which leads to more cost effective for the overall system.
- Product Highlights
- • Best in class in DIP8, DIP7, TO220 and DSO16/12 packages
- • No heat-sink required for DIP8, DIP7 and DSO16/12
- • Increased creepage distance for TO220, DIP7 and DSO16/12
- • Isolated drain for TO220 packages
- • Lowest standby power dissipation
- • Enhanced protection functions with Auto Restart Mode
- • Pb-free lead plating for all packages; RoHS compliant
- Features
- • 650V/800V avalanche rugged CoolMOS™
- • Only few external components required
- • Input Vcc Undervoltage Lockout
- • 67kHz/100kHz switching frequency
- • Max duty cycle 72%
- • Low Power Standby Mode to meet European Commission Requirements
- • Thermal Shut Down with Auto Restart
- • Overload and Open Loop Protection
- • Overvoltage Protection during Auto Restart
- • Adjustable Peak Current Limitation via external resistor
- • Overall tolerance of Current Limiting < ±5%
- • Internal Leading Edge Blanking
- • User defined Soft Start
- • Soft driving for low EMI
ICE2A765P2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 6 Pin |
| Case/Package | TO-220-6 |
| Output Voltage | 650 V |
| Output Current | 7000 mA |
| Breakdown Voltage | 650 V |
| Rise Time | 30 ns |
| Switching Frequency | 107 kHz |
| Duty Cycle | 77 % |
| Maximum Duty Cycle | 77 % |
| Fall Time | 30 ns |
| Input Voltage | 8.5V ~ 21V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
