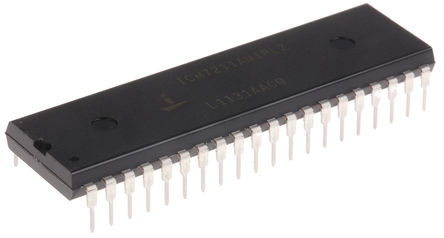

Image is for your reference only,please check specifications for details

ICM7211AMIPLZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC45279103
Category:
Active Chip
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICM7211AMIPLZ Display Driver, LCD 4 Digit, 7 Segments, 3V to 6V, CMOS, Non Multiplexed Interface, DIP-40
Stock Locations:
Availability:
825 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.59

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICM7211AMIPLZ is a 4-digit LCD Display Driver. The ICM7211AM device is a non-multiplexed four-digit seven-segment CMOS LCD display decoder-driver. This device is configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver and 28 segment outputs. It also has a microprocessor compatible input configuration, which provides data input latches and Digit Address latches under control of high-speed Chip Select inputs. These devices simplify the task of implementing a cost-effective alphanumeric seven-segment display for microprocessor systems, without requiring extensive ROM or CPU time for decoding and display updating. The ICM7211AM provides the "Code B" output code, i.e., 0-9, dash, E, H, L, P, blank, but will correctly decode true BCD to seven-segment decimal outputs. Provides data and digit address latches controlled chip select inputs to provide a direct high speed processor interface.
Four digit non-multiplexed 7 segment LCD display outputs with backplane driver
Complete onboard RC oscillator to generate backplane frequency
Backplane input/output allows simple synchronization slave-devices to a master
Decodes binary to code B (0-9, Dash, E, H, L, P, blank)
ESD sensitive device, take proper precaution while handling the device.

Show

ICM7211AMIPLZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Supply Voltage (DC)	3.00V (min)
Output Current	10.0 mA
Supply Current	10 µA
Number of Positions	40 Position
Number of Bits	4 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	53.2 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
