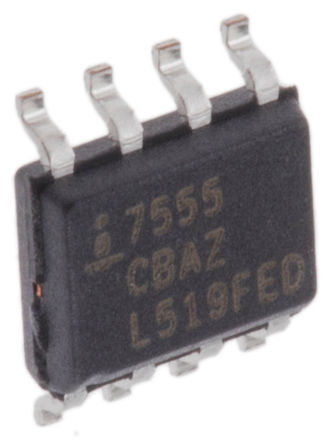

Image is for your reference only,please check specifications for details

ICM7555CBAZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC8145233
Category:
Clock Chip, Timing IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICM7555CBAZ Timer, Oscillator & Pulse Generator IC ,CMOS RC Timer, 1MHz, 2V to 18V, SOIC-8
Stock Locations:
Availability:
1,382 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICM7555CBAZ is a CMOS RC Timer providing significantly improved performance over the standard SE/NE 555/6 and 355 timers, while at the same time being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIGGER and RESET currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple CONTROL VOLTAGE for stable operation. In the one shot mode, the pulse width of each circuit is precisely controlled by one external resistor and capacitor. For astable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled by two external resistors and one capacitor. The circuit is triggered and reset on falling (negative) waveforms and the output inverter can source or sink currents large enough to drive TTL loads or provide minimal offsets to drive CMOS loads.
Normal reset function - no crowbarring of supply during output transition
Can be used with higher impedance timing elements than regular for longer RC time constants
Timing from microseconds through hours
Operates in both astable and monostable modes
Adjustable duty cycle
High output source/sink driver can drive TTL/CMOS
Outputs have very low offsets, HI and LO

Show

ICM7555CBAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	1 MHz
Supply Voltage (DC)	2.00V (min)
Current Rating	60.0 A
Supply Current	60 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	2V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	2 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
