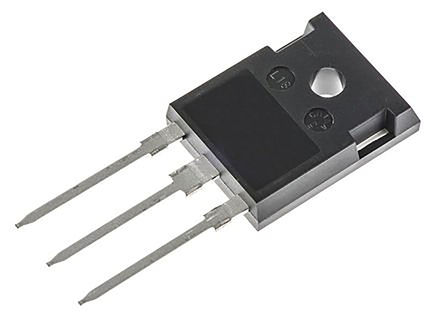

IKW75N65EL5 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC51241529
Category:
IGBT Transistor, IGBT Module
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Infineon’s new L5 low saturation voltage (V CE(sat)) TRENCHSTOP™ IGBT family has been specifically optimized for low switching frequencies ranging from 50Hz to 20kHz. Optimization of the carrier profile of the innovative 55µm TRENCHSTOP™ 5 thin wafer technology allows to reduce conduction losses to the intrinsically low level – 1.05V for 30A IGBT and 1.1V for 75A IGBT.
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.82

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Lowest saturation voltage V CE(sat) of only 1.05V
Low switching losses of 1.6mJ @ 25°C for 30A IGBT
High thermal stability of electrical parameters - only 2% drift with T j increase from 25°C to 175°C
Enhanced efficiency for 20% lower switching losses in TO-247 4pin Kelvin-Emitter package
Benefits:
Higher efficiency for 50Hz
Longer lifetime and higher reliability of IGBT
High design reliability due to stable thermal performance
Target Applications:
UPS
Solar
Welding

Show

IKW75N65EL5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	536 W
Breakdown Voltage (Collector to Emitter)	650 V
Reverse recovery time	114 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	536 W
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-40℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
