Description

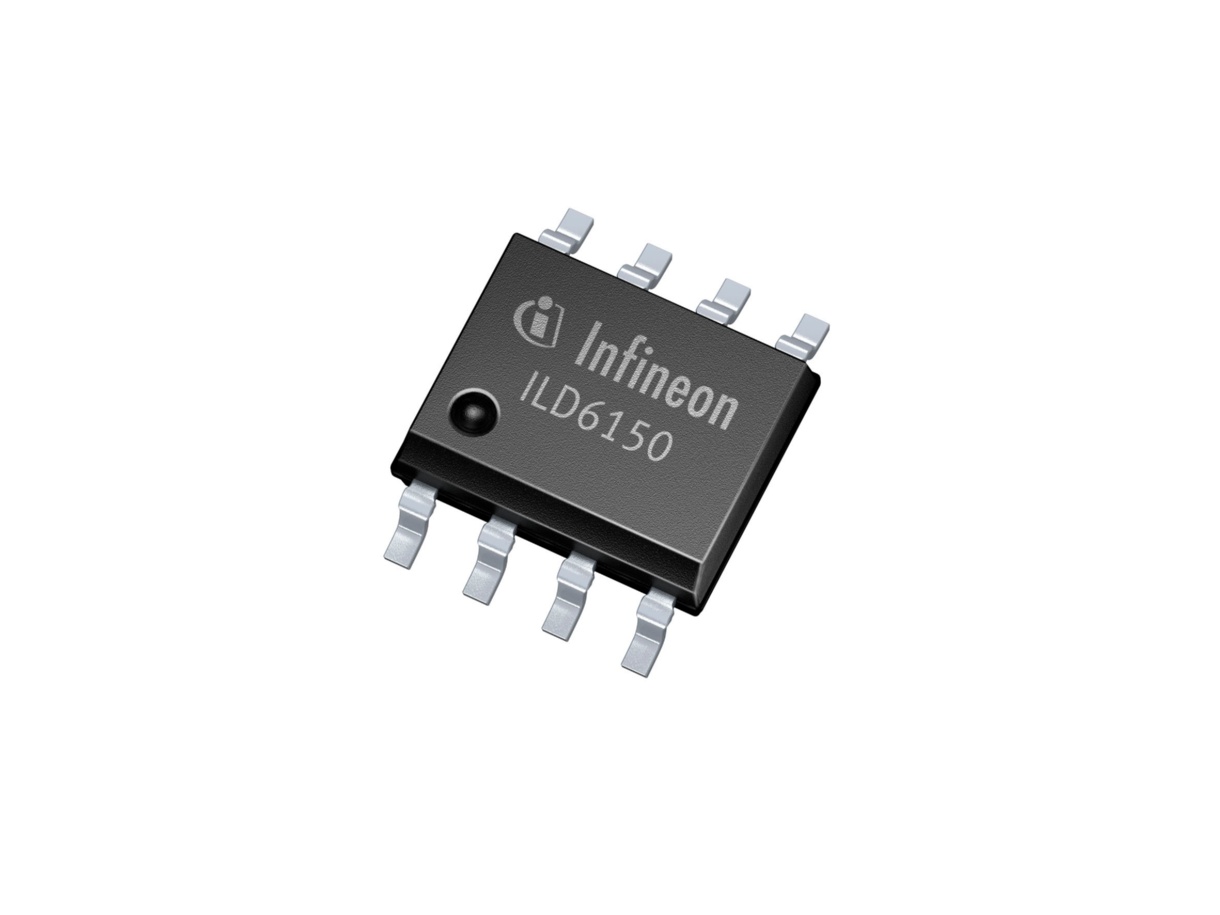

The ILD6150XUMA1 is a LED driver IC for high power LEDs in PG-DSO-8-27 package. This is a hysteretic buck LED driver IC for driving high power LEDs in general lighting applications with average currents up to 1.5A. A multifunctional PWM input signal allows dimming of LEDs with an analogue DC voltage or an external PWM signal. To minimize colour shifts of LEDs an analogue PWM voltage is converted to an internal 1.6KHz PWM signal modulating LED current. It incorporates an undervoltage lock-out that shut down IC when minimum supply voltage threshold is exceeded. An integrated over temperature protection circuit will start to reduce LED current by internal PWM modulation once adjustable junction temperature threshold of IC is exceeded. Realizing thermal coupling between LED driver IC and LEDs will eliminates need of external temperature sensors as NTCs or PTCs. It is used in LED driver for general lighting, retail, office, residential downlights, street & tunnel lighting and LED ballas
Wide input voltage range from 4.5V to 60V
Up to 1MHz switching frequency, capable to provide up to 1.5A average output current
Soft-start capability
Analogue and PWM dimming possible
Integrated PWM generator for analogue dimming input
Typical 3% output current accuracy
Very low LED current drift over temperature
Adjustable over temperature protection
Undervoltage lockout, over current protection
Over-current protection turns off output stage once output current is above current threshold

Show

ILD6150XUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Frequency	1 MHz
Number of Outputs	1 Output
Output Current	1.5 A
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	2000 W
Power Consumption	2 W
Switching Frequency	1 MHz
Input Voltage (Max)	60 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	60 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	60 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Input Voltage	4.5V ~ 60V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
