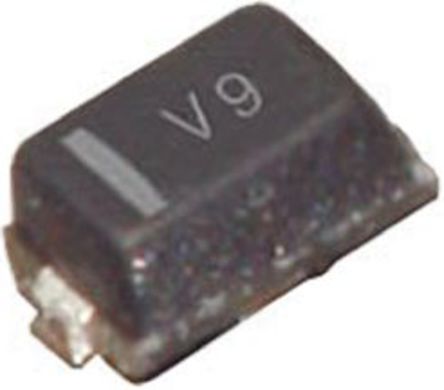

Image is for your reference only,please check specifications for details

BAS40SL - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC54044439
Category:
Schottky Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR BAS40SL Small Signal Schottky Diode, Single, 40V, 100mA, 1V, 600mA, 150℃
Stock Locations:
Availability:
10,293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAS40SL is a Schottky Barrier Diode for general usage and suitable for many different applications.
Low forward voltage drop
Fast switching
Very small and thin SMD package
0.43mm Profile height (maximum)
1.0 x 0.6mm Footprint

Show

BAS40SL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	1V @40mA
Thermal Resistance	550℃/W (RθJA)
Reverse recovery time	8 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	1V @40mA
Forward Current (Max)	100 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.41 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
