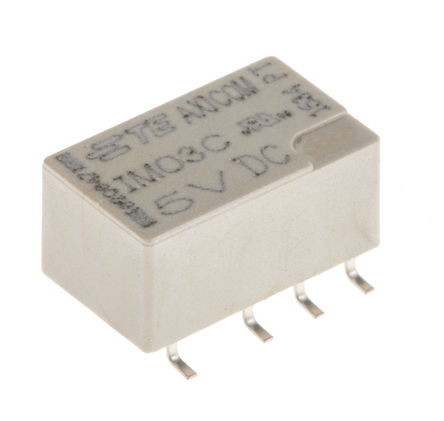

IM03CGR - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC36131141
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 5VDC 178Ω 2A DPDT (( 10mm 7.5mm 5.65mm)) SMD Signal Relay Automotive
Stock Locations:
Availability:
3,502 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4146.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IM03CGR is a Signal Relay with DC coil. This IM-series relay has 2-form-C (2CO) PdRu + Au monostable single contacts with high dielectric version performance type. High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts.
SMT-gull wing terminals
Low coil power consumption
High mechanical shock resistance up to 50g functional

Show

IM03CGR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP
Current Rating	2 A
Insulation Resistance	>1000 MΩ
Contacts Type	DPDT
Contact Resistance	50.0 mΩ
Power Consumption	140 mW
Coil Voltage	5 VDC
Coil Current	28.1 mA
Coil Power (DC)	140 mW
Coil Resistance	178 Ω
Current Rating (Max)	2 A
Coil Voltage (DC)	5 V
Coil Power	140 mW
Input Power (Max)	60W, 62.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	10 mm
Size-Width	5.65 mm
Size-Height	5.65 mm
Contact Material	Gold Plating
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
HTS Code	8536410050
ECCN Code	EAR99
