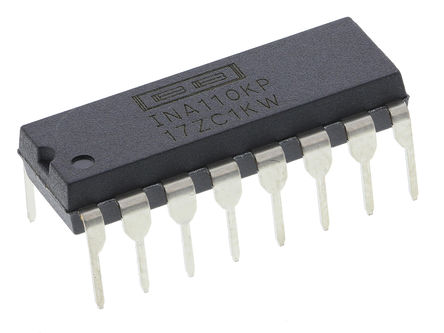

Image is for your reference only,please check specifications for details

INA110KP - TI
Manufacturer:
TI
ManyChip's Part#:
MC4197128
Category:
Instrumentation Amplifier IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Instrument Amplifier, 1 Amplifier, 500μV, 17V/µs, 2.5MHz, 12V to 36V, DIP
Stock Locations:
Availability:
815 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA110KP is a versatile monolithic fast-settling FET-input Instrumentation Amplifier for use with high speed gain block. Its current-feedback circuit topology and laser trimmed input stage provide excellent dynamic performance and accuracy. The INA110 settles in 4µs to 0.01%, making it ideal for high speed or multiplexed-input data acquisition systems. Inputs are protected for differential and common-mode voltages up to ±VCC. Its very high input impedance and low input bias current make the INA110 ideal for applications requiring input filters or input protection circuitry.
Continuous to common output short-circuit duration
10 to 50ppm/°C Very low gain drift
Green product and no Sb/Br

Show

INA110KP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	18.0V (max)
Operating Voltage	6V ~ 18V
Supply Current	3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	110 dB
Quiescent Current	3.00 mA
Bandwidth	2.5 MHz
Slew Rate	17.0 V/μs
Gain Bandwidth Product	2.5 MHz
Gain	1.00 kdB
Input Offset Voltage	500 µV
Input Bias Current	20 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	2.5 MHz
Gain Bandwidth	470 kHz
Minimum CMRR Range	106 dB
Supply Voltage	12V ~ 36V
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	12 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
