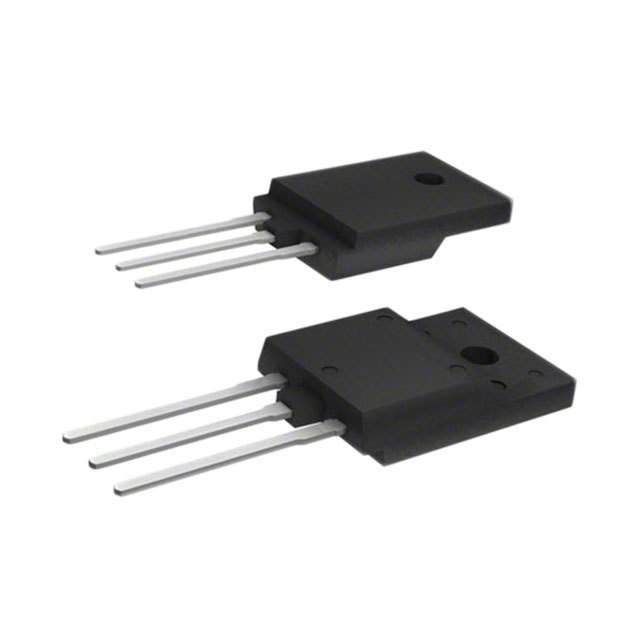

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Reduced gate charge (Q g)
Higher V th
Good body diode ruggedness
Optimized integrated R g
Improved dv/dt from 50V/ns
CoolMOS™ quality with over 12 years manufacturing experience in superjunction technology
Benefits:
Improved effciency especially in light load condition
Better efficiency in soft switching applications due to earlier turn-off
Suitable for hard- & soft-switching topologies
Optimized balance of efficiency and ease of use and good controllability of switching behavior
High robustness and better efficiency
Outstanding quality & reliability

Show

IPA60R600P6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Polarity	N-CH
Power Dissipation	28W (Tc)
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	4.9A
Rise Time	7 ns
Input Capacitance (Ciss)	557pF @100V(Vds)
Fall Time	14 ns
Power Dissipation (Max)	28W (Tc)
	Show
Size-Length	10.65 mm
Size-Width	4.85 mm
Size-Height	16.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
