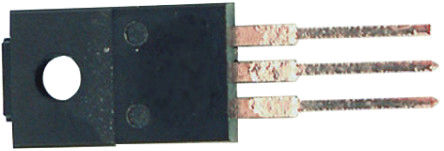

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPA65R190E6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	190 mΩ
Polarity	N-CH
Power Dissipation	34 W
Drain to Source Voltage (Vds)	700 V
Breakdown Voltage (Drain to Source)	700 V
Continuous Drain Current (Ids)	20.8A
Rise Time	11 ns
Input Capacitance (Ciss)	1620pF @100V(Vds)
Input Power (Max)	34 W
Fall Time	10 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	34 W
	Show
Size-Length	10.65 mm
Size-Width	4.85 mm
Size-Height	16.15 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
