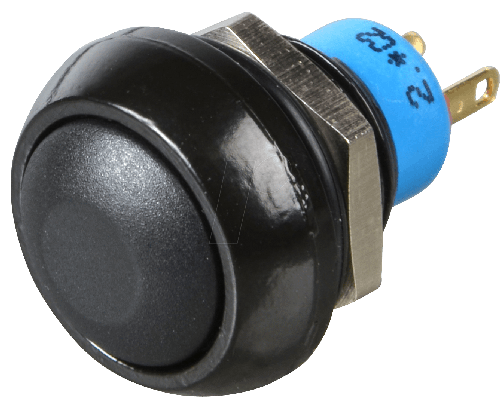

Image is for your reference only,please check specifications for details

IPR3SAD2 - Apem Components
Manufacturer:
Apem Components
ManyChip's Part#:
MC34317159
Category:
Pushbutton Switch, Switch Push button
Datasheet:
Datasheet 3D Model
Description:
Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IPR3SAD2 is a single-pole single-throw (SPST) non-illuminated momentary Pushbutton Switch for harsh environments, with solder lug terminal, black round curved actuator and NO electrical functions. IP series switch has gold plated silver contact, polyamide 6/6 actuator, polycarbonate lens and epoxy terminal seal. A sealing boot is available to protect the switches against frost and sand.
Tactile feedback
12mm Bushing diameter
100mR Initial contact resistance
IP67 Protection rating

Show

IPR3SAD2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Solder Lug
Contact Plating	Gold
Voltage Rating (DC)	50 V
Actuator Type	Button
Voltage Rating (AC)	48 V
Current Rating	500mA (AC), 200mA (DC)
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	50.0 mΩ
Contact Current Rating	500 mA
Current Rating (Max)	5A @28VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Height	6.4 mm
Color	Black
Contact Material	Silver
Operating Temperature	-40℃ ~ 125℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509030
ECCN Code	EAR99
