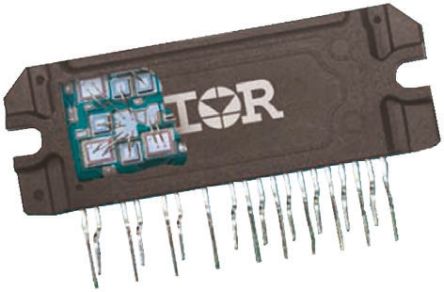

Image is for your reference only,please check specifications for details
- IRAMX20UP60A - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC50293438
-
Category:Motor Driver
-
Package:SIP-2
-
Datasheet:Datasheet 3D Model
-
Description:IRAMX20UP60A Series 20A 600V Open Emitter Pins Power Hybrid IC - SIP-2
-
Stock Locations:
-
Availability:284 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.56
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Driver Module IGBT 3 Phase 600V 20A 23-PowerSIP Module, 19 Leads, Formed Leads
IRAMX20UP60A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 19 Pin |
| Case/Package | SIP-2 |
| Output Voltage | 450 V |
| Output Current | 20 A |
| Number of Channels | 3 Channel |
| Power Dissipation | 38000 mW |
| Isolation Voltage | 2000 Vrms |
| Switching Frequency | 20.0 kHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 38000 mW |
| Supply Voltage | 12.20 VDC |
| Show | |
| Size-Length | 62 mm |
| Size-Width | 5.5 mm |
| Size-Height | 25.5 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
