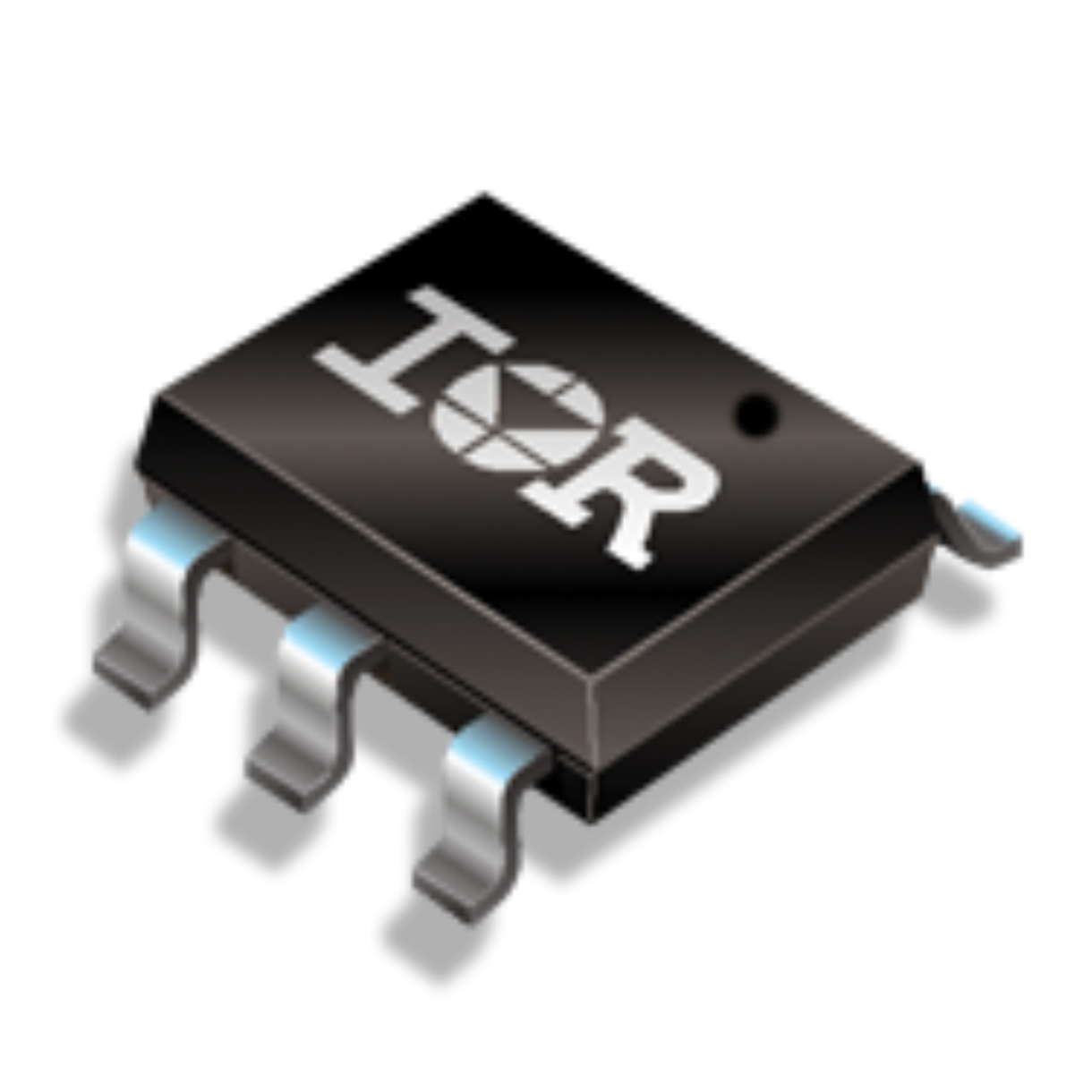

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRF5803 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TSOT-23-6
Polarity	P-CH
Power Dissipation	2W (Ta)
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	3.4A
Input Capacitance (Ciss)	1110pF @25V(Vds)
Power Dissipation (Max)	2W (Ta)
	Show
Product Lifecycle Status	Active
