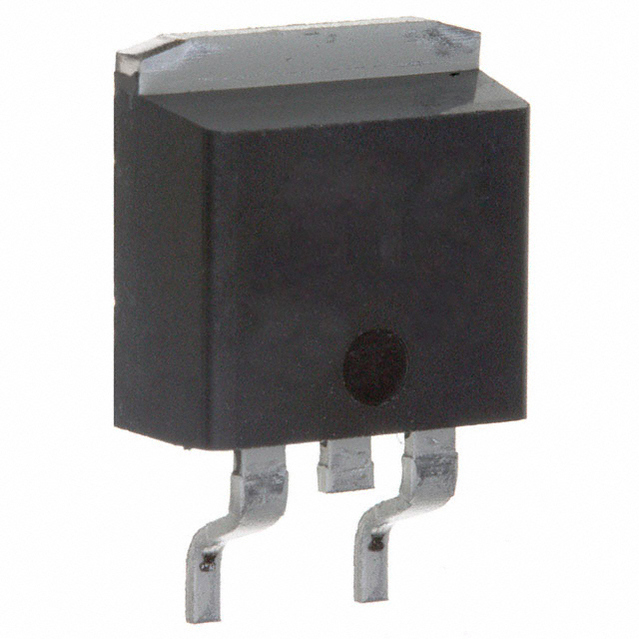

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Single N-Channel 400 V 0.55 Ohms Surface Mount Power Mosfet - D2PAK
IRF740STRLPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Drain to Source Resistance (on) (Rds) | 550 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 3.1 W |
| Drain to Source Voltage (Vds) | 400 V |
| Continuous Drain Current (Ids) | 10.0 A |
| Rise Time | 27 ns |
| Input Capacitance (Ciss) | 1400pF @25V(Vds) |
| Input Power (Max) | 3.1 W |
| Fall Time | 24 ns |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
