Description

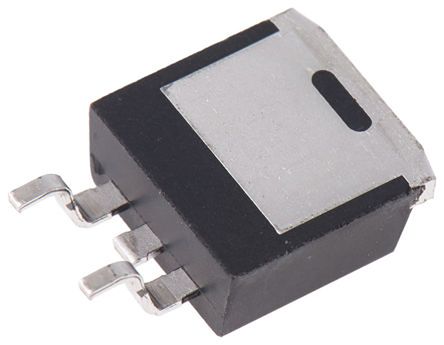

The IRF9530SPBF is a third generation P-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The D2PAK is a surface-mount power package capable of accommodating die size up to HEX-4. It provides the highest power capability in any existing surface-mount package. The D2PAK is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2W in a typical surface-mount application.
Dynamic dV/dt rating
Repetitive avalanche rated
-55 to 175°C Operating temperature range
Surface-mount
Halogen-free

Show

IRF9530SPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.3 Ω
Polarity	P-Channel
Power Dissipation	3.7 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	-12.0 A
Rise Time	52 ns
Input Capacitance (Ciss)	860pF @25V(Vds)
Input Power (Max)	3.7 W
Fall Time	39 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3700 mW
	Show
Size-Length	10.67 mm
Size-Width	9.02 mm
Size-Height	4.83 mm
Product Lifecycle Status	Active
Minimum Packing Quantity	2000
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
