Description

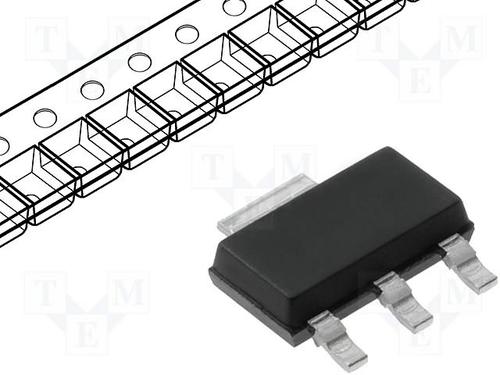

The IRFL9014PBF is a -60V P-channel Power MOSFET designed for fast switching, rugged device design and low on-resistance. The SOT-223 package is designed for surface-mount using vapour phase, infra-red or wave soldering techniques. Its unique package design allows for easy automatic pick-and place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heat sinking. Power dissipation of greater than 1.25W is possible in a typical surface mount application.
Dynamic dV/dt rating
Repetitive avalanche rated
150°C Operating temperature
Easy to parallel
Fast switching

Show

IRFL9014PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	-60.0 V
Current Rating	-1.80 A
Power Rating	3.1 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.5 Ω
Polarity	P-Channel
Power Dissipation	2 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	-60.0 V
Continuous Drain Current (Ids)	-1.80 A
Rise Time	63 ns
Input Capacitance (Ciss)	270pF @25V(Vds)
Input Power (Max)	2 W
Fall Time	31 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2W (Ta), 3.1W (Tc)
	Show
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
