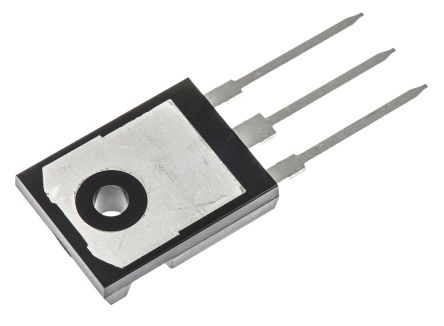

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRFP244PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	250 V
Current Rating	15.0 A
Power Rating	150 W
Drain to Source Resistance (on) (Rds)	280 mΩ
Polarity	N-Channel
Power Dissipation	150 W
Threshold Voltage	2V ~ 4V
Drain to Source Voltage (Vds)	250 V
Breakdown Voltage (Drain to Source)	250 V
Continuous Drain Current (Ids)	15.0 A
Rise Time	49 ns
Input Capacitance (Ciss)	1400pF @25V(Vds)
Input Power (Max)	150 W
Fall Time	24 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 W
	Show
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.82 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
