IRFPS40N50LPBF VISHAY - MOSFETs - ManyChip Electronics

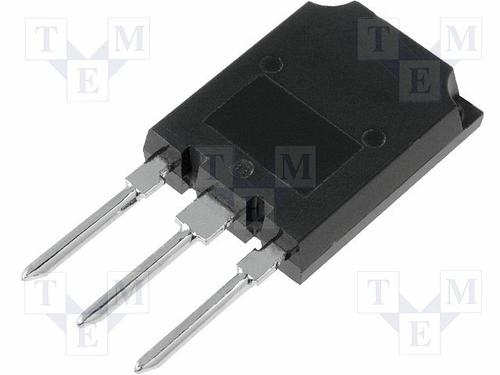

Image is for your reference only,please check specifications for details

IRFPS40N50LPBF - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC4740800
Category:
MOSFETs
Package:
TO-274
Datasheet:
Datasheet 3D Model
Description:
Силовой МОП-транзистор, N-канал, VDSS 500 В, RDS(ON) 0.087 Ом, ID 46 А, корпус TO-274AA, PD 540 Вт, VGS ±30 В
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.39

Updated at 20/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Однопроводный N-канальный транзистор для сети 500 В, с сопротивлением провода 0,087 Ом – модель SUPER-247

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-274
Voltage Rating (DC)	500 V
Current Rating	46.0 A
Power Rating	540 W
Polarity	N-Channel
Power Dissipation	540 W
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Continuous Drain Current (Ids)	46.0 A
Rise Time	170 ns
Input Capacitance (Ciss)	8110pF @25V(Vds)
Rating Power (Max)	540 W
Fall Time	69 ns
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
