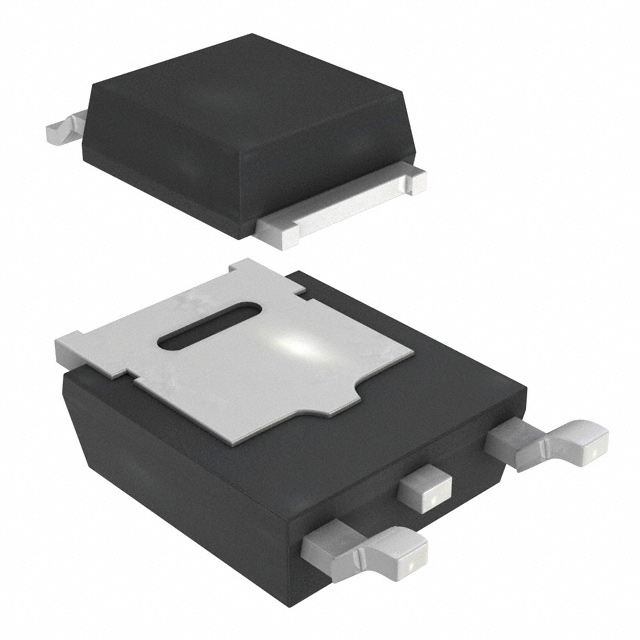

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFR420 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252
Voltage Rating (DC)	500 V
Current Rating	2.40 A
Polarity	N-Channel
Power Dissipation	42.0 W
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500V (min)
Continuous Drain Current (Ids)	2.40 A
Rise Time	8.60 ns
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
