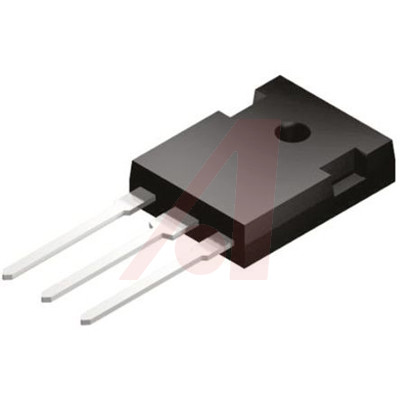

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Single IGBT over 21A, Infineon**
optimized IGBTs designed for medium frequency applications with fast response and provide the user with the highest efficiency available. utilizing FRED diodes optimized to provide the best performance with IGBT"s

Show

IRGP4086PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Dissipation	160 W
Part Family	IRGP4086
Breakdown Voltage (Collector to Emitter)	300 V
Input Power (Max)	160 W
Operating Temperature (Max)	170 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	15.87 mm
Size-Height	20.7 mm
Operating Temperature	-40℃ ~ 170℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
