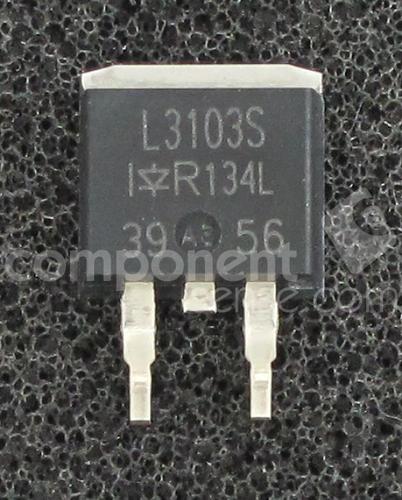

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Industry-leading quality
- Fully Avalanche Rated
- Logic Level
IRL3103S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 64.0 A |
| Polarity | N-Channel |
| Power Dissipation | 94W (Tc) |
| Part Family | IRL3103S |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30.0 V |
| Continuous Drain Current (Ids) | 64.0 A |
| Rise Time | 120 ns |
| Input Capacitance (Ciss) | 1650pF @25V(Vds) |
| Fall Time | 9.1 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 94W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | End of Life |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
