IRL3714ZPBF International Rectifier - MOSFET, MOSFET Transistor

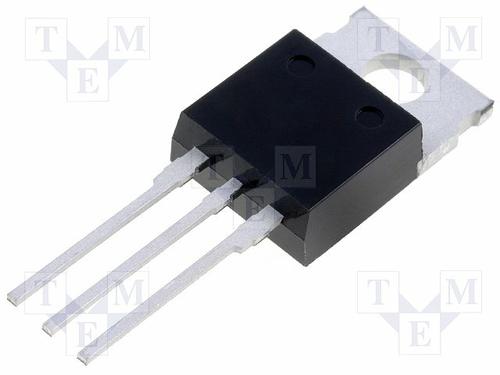

Image is for your reference only,please check specifications for details

Updated at 06/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRL3714ZPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	20.0 V
Current Rating	36.0 A
Polarity	N-Channel
Power Dissipation	35 W
Part Family	IRL3714Z
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	36.0 A
Rise Time	13.0 ns
Input Capacitance (Ciss)	550pF @10V(Vds)
Input Power (Max)	35 W
	Show
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
